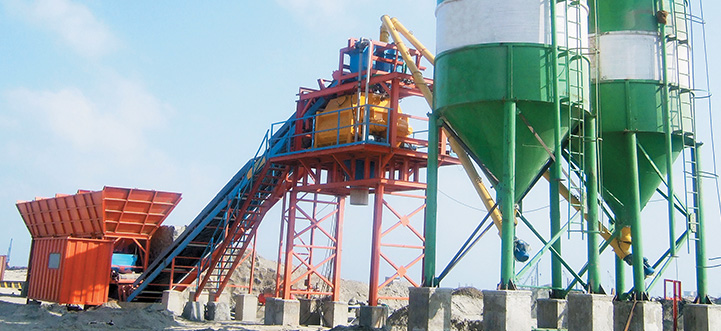

Concrete Batching Plant
With the years of experience and well trained professionals, we have come up with a wide range of concrete batching machine. The machines designed and developed in our facilities are technologically uncommon. Fully automatic concrete batching plants are available up to 60 cbm/hr capacity. These plants are not only highly advanced and durable, but also fully automatic. Following all the quality guidelines set by the industry experts, our experts manufacture such a range using superior-grade raw material. Our company is offering this range in a number of sizes, designs with customization solutions.
Features
- Plants available in 30 / 45 / 60 cbm/hr capacity.
- Equipped with Pan / Planetary / Twin Shaft Mixer.
- Inline storage of Aggregates.
- Aggregate weighing conveyor suspended on load cells.
- Inclined conveyor for feeding of aggregate into mixer.
- Independent weighing system for Cement, Water & Additive.
- Operation through Fully Automatic Electronic Control Panel.
- Manufacturing is done with advanced, internationally recognized techniques at our State of the art facilities.
- Global presence with prompt after sales support.
- Dedicated R & D Department.
Optionals
- Cement / Fly Ash storage & conveying system up to 100 MT capacity.
- Radial Conveyor for feeding of aggregate into the bins.
Mixer Features
- Outstanding Homogenity In Short Time
- Low Wear Design
- Easy & Low Maintenance
Controls
- PLC Based Control
- SCADA Interface
- Automatic & Manual Operation
- Auto Correction of Water
- Inventory Control Management
Transfer Belt
- Corrugated Side wall
- Cleat placement for box formation
- 40° angle for conveyance of material
- Rugged structure for long life
- Compact Placement of Plant
Technical Specifications:
| MODEL | SCP - 30 |
SCP - 45 |
SCP - 60 |
| Output (cbm/hr) | 30 | 45 | 60 |
| Type of Sand / Aggregate Bin | In Line | In Line | In Line |
| No. of Bins | 4 | 4 | 4 / 5 |
| Bin Capacity (Each) | 8 cbm | 10 cbm | 12 cbm |
| Transfer Belt Width (Deep Bucket Type) | 800 mm | 800 mm | 1000 mm |
| Type of Mixer | Pan | Planetary | Twin Shaft |
| Cement / Filler Weighing System |  |
|
|
| Water Weighing System | |
|
|
| Admixture Weighing System | |
|
|
| Air Compressor | |
|
|
| Controls | SCADA Enabled | SCADA Enabled | SCADA Enabled |
| Auto + Manual Mode | |
|
|
| Inventory Management | |
|
|
| Discharge Height | 4.1 mtr. | 4.1 mtr. | 4.1 mtr. |
Weighing Accuracy - Confirming to IS & DIN standards 2% for aggregate & 1% for water & cement.
